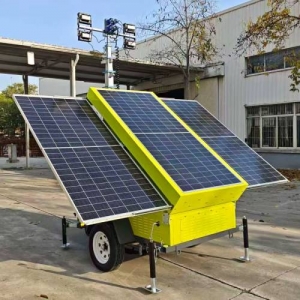

Solar-powered light tower with 4 x 150 W LED floodlights
The 4TNVE600 mobile solar light tower is a self-contained solution for temporary lighting on construction sites, in operational areas, industrial yards, outdoor events and remote locations where a direct connection to the power grid is unavailable.
The system uses 3 monocrystalline photovoltaic panels rated at 470 W each to charge a 24 V gel battery bank. The 4 LED floodlights, each rated at 150 W, provide a total luminous flux of 84,000 lm and can be manually adjusted through an angle ranging from 0° to 90°.
Autonomous lighting powered by solar energy
The 4TNVE600 stores the energy produced by its photovoltaic panels and uses it to power the LED lighting system. The declared continuous operating time ranges from 8 to 12 hours, depending on operating conditions and the battery charge level.
The photovoltaic panels are installed on reinforced drawer-type sliding rails, allowing them to be extended during operation and retracted when the light tower is prepared for transport.
Telescopic mast reaching up to 9 metres
The telescopic mast consists of 6 sections and reaches a maximum fully extended height of 9 metres. The system supports manual and electric mast lifting, with lifting heights specified in the technical documentation as 9 metres and 7 metres.
Raising the floodlights improves light distribution across a wider area, while manual angle adjustment allows the light direction to be adapted to specific operational requirements.
Trailer-mounted structure and stabilisation system
The light tower is mounted on a single-axle trailer with leaf-spring suspension and four manual support legs equipped with retractable support rods. The drawbar includes an adjustable retractable jockey wheel, while the towing head is compatible with a 2-inch or 50 mm ball coupling.
The trailer is fitted with standard 14-inch tyres and a rear reflector. The declared maximum towing speed is 80 km/h. Before transport, the suitability of the towing vehicle, operating conditions and applicable local regulations must be checked.
Recommended applications
- Construction and infrastructure sites
- Road works and night-time maintenance
- Operational areas without access to mains electricity
- Industrial yards and logistics areas
- Car parks, access points and transit areas
- Outdoor events and temporary installations
- Emergency response and civil protection operations
- Remote areas and temporary workstations
Main features
- 3 x 470 W monocrystalline photovoltaic panels
- Total photovoltaic power of 1,410 W
- 4 x 150 W LED floodlights
- Total luminous flux of 84,000 lm
- 24 V DC operating system
- 6 x 200 Ah gel batteries
- Declared battery life of 1,000 cycles
- Declared continuous operating time of 8 to 12 hours
- 6-section telescopic mast
- Maximum fully extended height of 9 metres
- Manual and electric mast lifting
- IP68 protection rating
- Four manual stabilising support legs
- Trailer-mounted structure designed for towing
Technical data sheet
| Technical data sheet: | 4TNVE600 |
| Dimensions and weight | |
| Operating length / transport length: | 3200 mm / 2200 mm |
| Operating width / transport width: | 1630 mm / 1630 mm |
| Operating height / transport height: | 2750 mm / 2330 mm |
| Maximum fully extended height: | 9 m |
| Gross weight: | 1180 kg |
| Lighting system | |
| Light source type: | LED |
| Number of floodlights and power: | 4 x 150 W |
| Luminous flux: | 4 x 21,000 lm, 84,000 lm total |
| Declared service life: | 8000 hours |
| Protection rating: | IP68 |
| Lighting angle: | 0-90°, manual adjustment |
| Battery system | |
| System operating voltage: | 24 V DC |
| Battery type: | Gel battery |
| Number and capacity of batteries: | 6 x 200 Ah |
| Declared battery life: | 1000 cycles |
| Solar panels | |
| Number and power of photovoltaic panels: | 3 x 470 W |
| Total photovoltaic power: | 1410 W |
| Photovoltaic panel type: | Monocrystalline silicon photovoltaic panels |
| Panel deployment system: | Reinforced drawer-type sliding rails |
| Controller: | Solar controller |
| Telescopic mast | |
| Number of mast sections: | 6 |
| Mast lifting mode: | Manual / electric |
| Lifting height: | 9 m / 7 m |
| Lighting angle adjustment: | Manual |
| Maximum wind resistance at full extension: | 20 m/s |
| Trailer and towing system | |
| Suspension and brakes: | Leaf-spring suspension and single axle without brakes |
| Drawbar: | Drawbar with adjustable retractable jockey wheel |
| Support legs: | 4 manual support legs with retractable support rods |
| Tyres: | Standard 14-inch tyres |
| Towing head: | 2-inch or 50 mm ball coupling |
| Rear signalling: | Rear reflector |
| Declared maximum towing speed: | 80 km/h |
| Other technical data | |
| Continuous operating time: | 8-12 hours |
| Wiring and electrical components: | Conventional |
| Standard colours: | Green, yellow or white outer enclosure; grey or black frame; galvanised light mast; matching drawbar and support legs |
Why choose the 4TNVE600 solar light tower
The 4TNVE600 is suitable when a mobile lighting system capable of operating without a continuous connection to the power grid is required. Its combination of photovoltaic panels, gel batteries and LED floodlights makes it possible to quickly install a self-contained lighting point in temporary, remote or isolated operational areas.
The four-floodlight configuration, telescopic mast reaching up to 9 metres and manual stabilising legs make it suitable for professional environments requiring wide light coverage, energy autonomy and the ability to reposition the unit as operational needs change.
